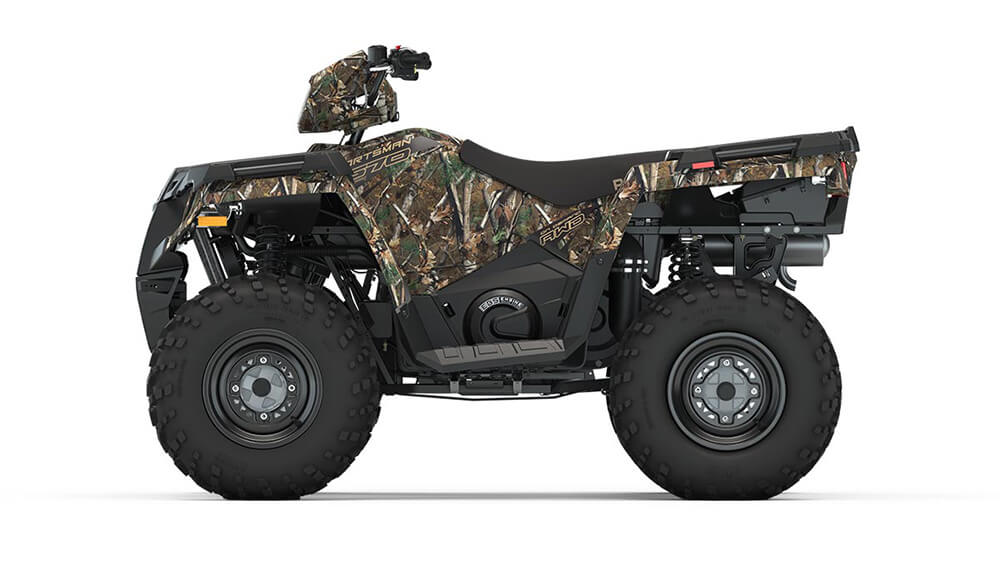

SPORTSMAN® 570 EPS
LEGENDARY TOUGH SPORTSMAN® 570S
The best-selling Automatic 4x4 ATV of all time is back with epic riding and legendary handling.
Polaris Pursuit Camo
Sportman® 570 EPS
- Polaris Pursuit Camo Dipped Graphics
- Durable 26" PXT Tires on Matte Black 14" Aluminum Wheels
- 2,500 lb Polaris HD Winch
- Gun Scabbard
- Front and Rear Bumpers
- Front and Rear Rack Extender
- Hand and Thumb Warmers
RIDE HARDER
Legendary Sportsman® riding and handling allow you to navigate the tightest corners and conquer the toughest terrain. Independent Rear Suspension and an industry-best 9.25" of suspension travel keep you riding comfortably and confidently all-day long.
GO FURTHER
The rider-inspired design takes you further down the trail with 11" of obstacle-dominating ground clearance. The industry's fastest-engaging all-wheel drive (AWD) pulls you around corners and over rocks without stopping.
DO MORE
Handle any task in confidence with the 2020 factory-installed receiver hitch and up to 1,500 lb in towing capacity. Get 485 lb payload capacity and a combined 270 lb front & rear rack capacity.
ENGINE & DRIVETRAIN
| Engine Type | Prostar 4-Stroke DOHC Single Cylinder |
| Cylinders-Displacement (cc) | 567 cc / 44 HP |
| Fuel System | Electronic Fuel Injection |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H; Shaft |
| Drive System Type | True On-Demand AWD/2WD |
| Cooling | Liquid |
Suspension
| Front Suspension | MacPherson Strut With 20.8 cm Travel |
| Rear Suspension | Dual A-Arm, IRS 24.1 cm Travel |
Brakes
| Front/Rear Brakes | Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake |
| Parking Brake | Park in Transmission/Lockable Hand Lever |
Tyres / Wheels
| Front Tyres | 25 x 8-12; 489 |
| Rear Tyres | 25 x 10-12; 489 |
| Wheels | Stamped Steel |
DIMENSIONS
| Bed Box Dimensions (L x W x H) | N/A |
| Front/Rear Rack or Box Capacity | 40.8 kg / 81.6 kg |
| Fuel Capacity | 17.0 L |
| Ground Clearance | 27.9 cm |
| Overall Vehicle Size (L x W x H) | 210.8 x 121.9 x 121.9 cm |
| Wheelbase | 128.3 cm |
| Estimated Dry Weight | 325 kg |
Features
| Seat Height | 85.7 cm |
| Cargo System | Lock & Ride, 23 L Front Dry Storage, 8 L Rear Storage |
| Hitch Towing Rating | Front: 386 kg, Rear: 555.7 kg |
| Hitch/Type | Standard / 3,2 cm Receiver |
| Instrumentation | All Digital Gauge, Speedometer, Odometer, Tachometer, 2 Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet |
| Variants | Off-Road |
