RANGER® 500
UNSTOPPABLE PERFORMANCE. UNBEATABLE PRICE.
Your entry to the world of hard working side-by-side utility vehicles, with the perfect combination of bold features, ultimate performance and mid-size value.
Solar Red
Ranger® 500
- 32HP
- 500cc ProStar® Engine
- 10" Ground Clearance
- 1,500 LB Towing Capacity
- On-Demand AWD/2WD
- WersaTrac Turf Mode
PURPOSE-BUILT FOR YOUR JOBS
RANGER 500 is equipped with the payload capacity and box storage you require to get the necessary work done around the property.
ADJUSTABLE TILT STEERING
Utilize the tilt steering to adjust the position of the steering wheel to easily enter and exit the vehicle.
VERSATRAC TURF MODE
For work around the house, unlock the rear differential for easier and tighter turns that won’t tear up your lawn.
COMFORT & CONVENIENCE
Equipped with in-dash sealed storage and 2 cup holders so you can comfortably take everything you need along for the job.
TAKE IT ANYWHERE
RANGER 500 73" wheel base and 58" width can be easily stored in the back of many trucks so you can take it out for the jobs you need.
STANDARD 2" RECEIVER
Connect your trailer to your RANGER with the standard 2" receiver and maximize the impressive 1,500 lb towing capacity.

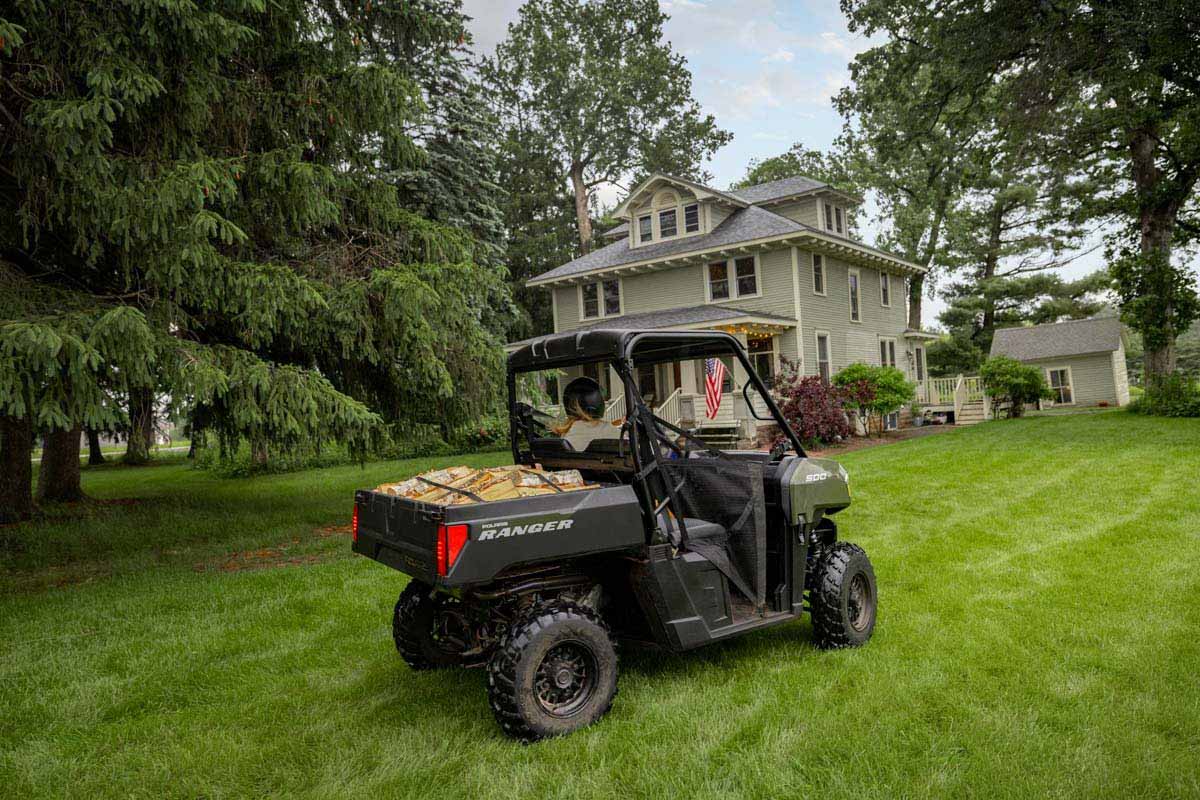

CARGO BOX CAPACITY
Haul up to 500 lbs using the cargo box and take advantage of Polaris Lock & Ride® Accessories to carry any item needed for the job.
GAS ASSIST DUMP BOX
For the larger loads, utilize the gas assist dump box to unload the bed of your RANGER.
ENGINE & DRIVETRAIN
| Engine Type | 4-Stroke Single Cylinder |
| Cylinders-Displacement (cc) | 500 cc / 32 HP |
| Fuel System | Electronic Fuel Injection |
| Transmission/Final Drive | Automatic PVT H/L/N/R/P; Shaft |
| Drive System Type | On-Demand True AWD/2WD/ VersaTrac Turf Mode |
| Cooling | Liquid |
Suspension
| Front Suspension | MacPherson Strut 22.9 cm Travel |
| Rear Suspension | Dual A-Arm, IRS 25.4 cm Travel |
Brakes
| Front/Rear Brakes | 4-Wheel Hydraulic Disc |
| Parking Brake | Park In-Transmission |
Tires / Wheels
| Front Tires | 25 x 8-12; 489 |
| Rear Tires | 25 x 10-12; 489 |
| Wheels | Stamped Steel |
DIMENSIONS
| Bed Box Dimensions (L x W x H) | 81 x 107 x 29 cm |
| Front/Rear Rack or Box Capacity | N/A kg / 226.8 kg |
| Fuel Capacity | 34.1 L |
| Ground Clearance | 25.4 cm |
| Overall Vehicle Size (L x W x H) | 279 x 147 x 185 cm |
| Wheelbase | 185.4 cm |
| Estimated Dry Weight | 483 kg |
Features
| Cargo System | Lock & Ride |
| Hitch Towing Rating | 680.4 kg |
| Hitch/Type | Standard / 5 cm Receiver |
| Instrumentation | Single Analog Dial with 5 cm LCD Rider Information Center, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Volt Meter, Service Indicator and Codes, Seatbelt Reminder Light, DC Outlet |
| Variants | Off-road |
