POLARIS UTE 570 HEAVY DUTY EPS

HEAVY DUTY FEATURES

The UTE 570 HD is specifically built for Australia & New Zealand with Heavy Duty "HD" Features. This special model variant exclusively designed for our local conditions comes complete with greasable/sealed ball joints, sealed driveshaft splines and sealed suspension bushings to not only provide increased durability in our harsh conditions, but also provide easier ongoing maintenance.

Velocity Blue

Polaris Ute 570 Heavy Duty EPS

HEAVY DUTY FEATURES

POWERFUL PROSTAR® 44 HP PERFORMANCE

Now with 22% more horsepower (44 hp) and featuring Electronic Fuel Injection (EFI) and Dual Overhead Cams with 4 valves per cylinder, the 570 starts flawlessly and runs smoothly.

ON-DEMAND TRUE ALL-WHEEL DRIVE (AWD)

Still the best automatic 4x4 system out there, the AWD engages all four tyres when the rear wheels slip and you need more forward traction. Reverts back to 2WD when you don't.

TILT BOX WITH 180KG CAPACITY

The 180 kg tipping dump box is a versatile feature not commonly found on other ATV's. Complete with tilt-tray functionality for ultimate convenience when dumping heavy loads and tie down points both in and outside of the tray to secure a range of items including a 100 L spray tank.

PRIMARY PRODUCER REGISTRATION

The UTE 570 HD is fitted with indicators, mirrors and a horn to save customers the expense of retrofitting these items when required for Primary Producer Registration.

ELECTRONIC POWER STEERING

The smoothest, most responsive power steering available, with 30% more power assist than the leading competitor, plus Variable Assist for easier steering at lower speeds. Our EPS let's you ride all day with less fatigue from steering.

ENGINE BRAKING SYSTEM & 4 WHEEL DESCENT CONTROL (4WDC)

For optimal control on descents, the UTE features a new Polaris 4 Wheel Descent Control (4WDC), which was designed specifically for the hills and duty cycles of Australia and New Zealand. The system automatically engages all four wheels when travelling down slopes for optimal traction and control in all conditions.

NARROW SEAT AND BACK REST

The UTE has a narrow seat and back rest for rider comfort designed to reduce fatigue. Coupled with wide floor boards it is a breeze to mount and dismount the UTE.

ENGINE & DRIVETRAIN

Engine Type	4-Stroke DOHC Single Cylinder
Cylinders-Displacement (cc)	567 cc / 44 HP
Fuel System	Electronic Fuel Injection
Transmission/Final Drive	Automatic PVT P/R/N/L/H; Shaft
Drive System Type	On-Demand True AWD/2WD
Cooling	Liquid

Suspension

Front Suspension	MacPherson Strut With 20.8 cm Travel
Rear Suspension	Dual A-Arm, IRS 24.1 cm Travel

Brakes

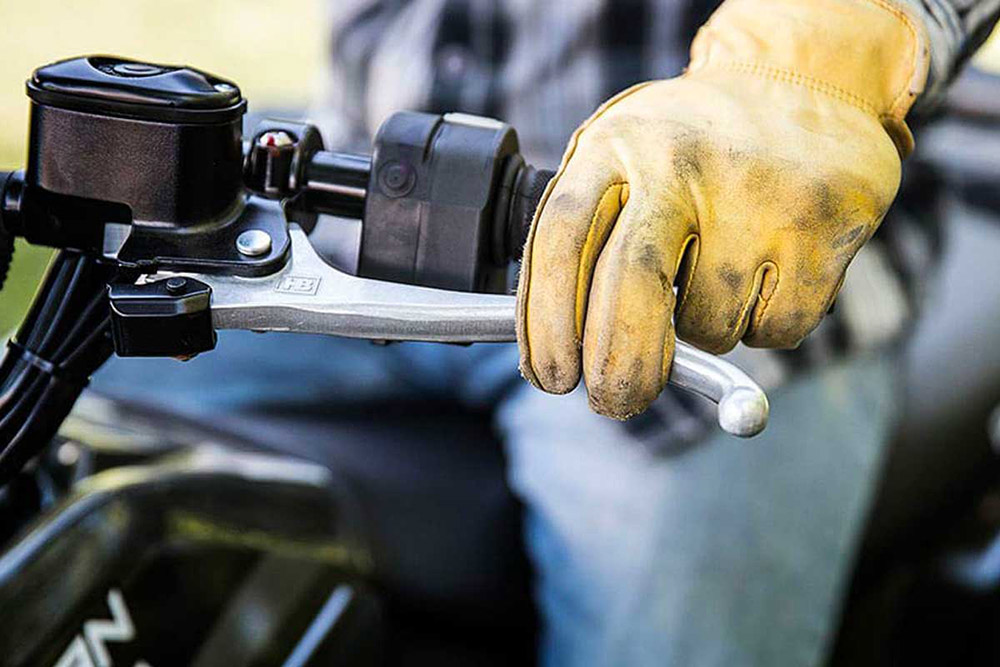

Front/Rear Brakes	Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake	Park in Transmission/Lockable Hand Lever

Tyres / Wheels

Front Tyres	25 x 8-12; 489
Rear Tyres	25 x 10-12; 489
Wheels	Stamped Steel

DIMENSIONS

Bed Box Dimensions (L x W x H)	N/A
Front/Rear Rack or Box Capacity	40.8 kg / 180 kg
Fuel Capacity	17.0 L
Ground Clearance	27.9 cm
Overall Vehicle Size (L x W x H)	210.8 x 121.9 x 116.8 cm
Wheelbase	142.2 cm
Estimated Dry Weight	330 kg

Features

Seat Height	85.7 cm
Cargo System	Lock & Ride
Hitch Towing Rating	555.7 kg
Hitch/Type	Standard / 3,175 Receiver
Instrumentation	Digital Gauge, Analog Speedometer, Odometer, Tachometer, 2 Tripmeters, Hour meter, Gear Indicator, Fuel Gauge, AWD Indicator, Low Battery, Hi-Temp Light, Clock, DC Outlet
Variants	Off-road
